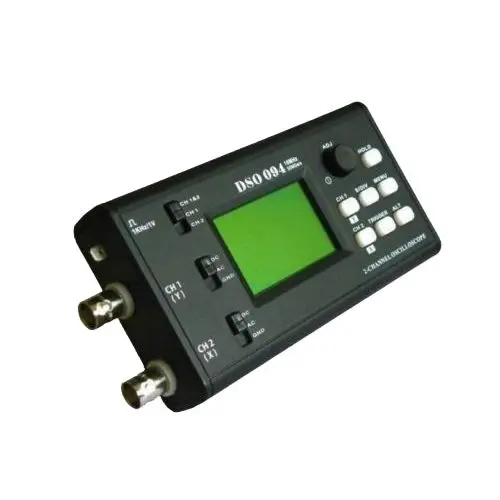

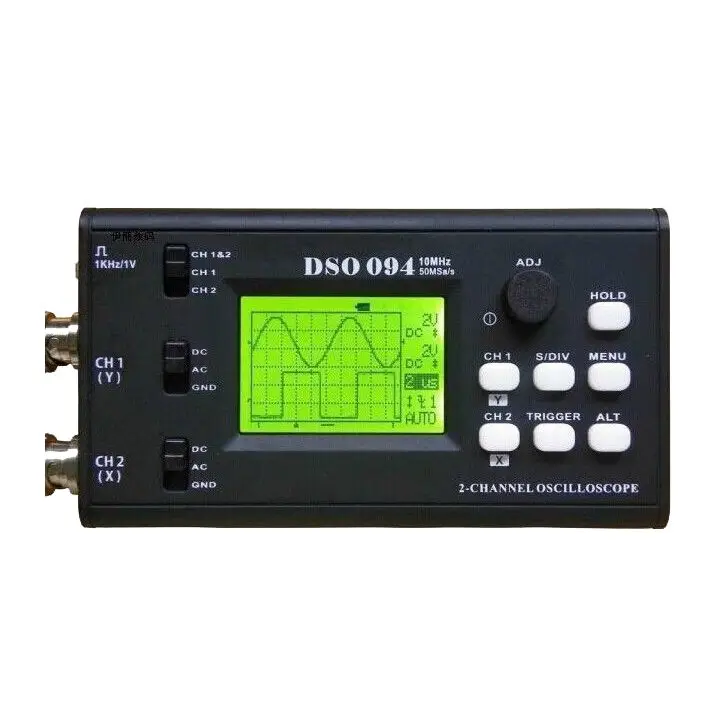

Dual Channel 10 MHz 50 MSa/s USB Virtual Digital Storage Oscilloscope

Dual Channel 10 MHz 50 MSa/s USB Virtual Digital Storage Oscilloscope
  • DSO 094 is the first two-channel member of our oscilloscope family
  • DSO 094 is very easy and straightforward to use
  • Now DSO 094 can also be used as PC oscilloscope
  • USB connection for data transfer and firmware upgrade
Product Code: HB-0648
Brand: JYETECH
Warranty: 7 Days Checking Warranty, Void if Burnt or Damaged
Availability: In Stock
Price Updated On: 19 Feb, 2019
Rs. 16,499
You save Rs. 1,000 (6% Off)
Shipping & Delivery
Shipping Cost: Rs. 200/Unit
Shipping in Hyderabad - Rs. 200.00, Islamabad - Rs. 200.00, Lahore - Rs. 200.00
Free Shipping (Karachi only)
  • DSO 094 is the first two-channel member of our oscilloscope family.Y/T mode and Y/X mode selectable
  • DSO 094 is very easy and straightforward to use. No annoying command navigations.
  • Now DSO 094 can also be used as PC oscilloscope .
  • USB connection for data transfer and firmware upgrade
  • Battery/USB powered


Product description


Specification:
Vertical
Number of Channel: 2
Analog Bandwidth: 0 - 10MHz
Sensitivity: 10mV/Div -- 2V/Div
Resolution: 8-bit
Input Impedance: 1M ohm
Maximum Input voltage: 50Vpk (for 1X probe) and 400Vpk (for 10X probe)
Coupling: DC, AC, GND

Horizonal
Max Real-time Sampling Rate: 50MSps
Timebase: 0.2us/Div - 10m(minute)/Div
Record Length: 500 - 8000 points (each channel) changeable
Run/Hold Modes: one button switchable
Trigger
Trigger Modes: Auto, Normal, Single
Trigger Types: Rising/falling edge
Trigger Sources: Ch 1 or Ch 2
Trigger sensitivity 0.2div - 4div adjustable
Trigger Position: 0% - 100% of capture buffer adjustable
Trig Point Indicator: Yes.
Display
2-inch 128 X 64 black-and-white dot-matrix LCD
Backlight ON/OFF control
Contrast adjustable
Power supply
3.7V Li-ion battery/USB
Supply Current: 300mA @ 3.7V(LCD backlight ON, typical).
Built-in charger

package info:
One DSO094 oscilloscope
Two BNC probe (20MHz, 1x and 10x switchable)
USB cable
User Manual(English)

aeProduct.getSubject()

aeProduct.getSubject()
One DSO094 oscilloscope Two BNC probe (20MHz, 1x and 10x switchable) USB cable User Manual(English)
